Spread Test & Charts
Find a Dealer

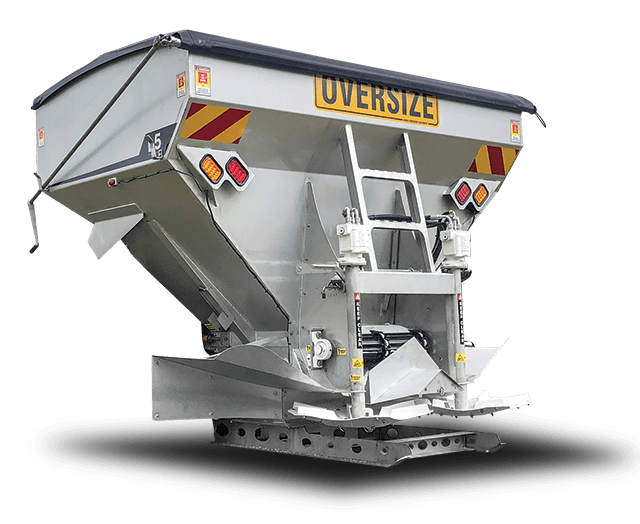

L-Series

Download Product Brochure
Download Warranty Information

Max Payload:

8,000kg

Spread Width:

UREA 36m / SSP 50m

Features

Weight Distribution

The Hansa L series features a unique connection that allows the spreader to sit much closer to the tractor aiding in weight distribution and essentially allowing larger pay loads to be carried with less front weight on the tractor.

Spread It All

The unique design of the Hansa L series uses a conveyor to deliver the product to the spinners, a lot of R&D has gone into the bin shape to ensure that bridging does not occur with the wide range of products the unit is able to spread, ranging from urea to lime.

Built for the Longhaul

The one piece stainless steel body is integrated with its frame, eliminating the chance of corrosion and extending the overall life of the spreader unit.

ISOBUS

Simply Plug and play, the Hansa ISOBUS control system is compatible with all ISOBUS compliant terminals and is variable rate ready as standard. This allows the operator to move the spreader from one machine to another with ease and no setup changes.

All L-Series

Specifications

Bin Length:

1700mm

Overall Length:

2300mm

Bin Width:

2800mm

Conveyor Width:

750mm

Oil Flow

80L/min

Warranty

12 months

L2
Loading...

Capacity:

2000L

Loading Height:

1680mm

UREA Capacity:

1500kg

LIME Capacity:

2500kg

L2.5
Loading...

Capacity:

2500L

Loading Height:

1750mm

UREA Capacity:

1800kg

LIME Capacity:

3200kg

L3
Loading...

Capacity:

3000L

Loading Height:

1850mm

UREA Capacity:

2250kg

LIME Capacity:

4000kg

L4
Loading...

Capacity:

4000L

Loading Height:

2000mm

UREA Capacity:

3000kg

LIME Capacity:

5000kg

L5
Loading...

Capacity:

5000L

Loading Height:

2150mm

UREA Capacity:

3750kg

LIME Capacity:

6000kg

L6
Loading...

Capacity:

6000L

Loading Height:

2300mm

UREA Capacity:

4500kg

LIME Capacity:

7500kg

Options

Tarp

900gsm Rollover Tarp

Rate Controller

ISOBUS
Hansa H5 controller (5” Touch screen)
Hansa H7 controller (7” Touch screen)

Section Control

Twin conveyor for headland & section control
(available with H7 & ISOBUS)

Mudguard

Detachable 2 Ply

Load Cells

When selected with ISOBUS rate controller auto rate control is enabled
